4 Port RJ45 Multiple Port Connectors With 100M Magnetics Module

Name: 4 Port RJ45 Multiple Port Connectors With 100M Magnetics Module
Brand: DGKYD
Price: 1 USD

Wholesale 4 Port RJ45 Multiple Port Connectors With 100M Magnetics Module from china suppliers

Place of Origin : DongGuan of China

Brand Name : DGKYD

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

MOQ : 1 piece

Packaging Details : Tray in Carton

Delivery Time : 10 days

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Model Number : KRJ-415GYZNL

Price : Please contact us to get the latest price.

Performance : CAT5/5e

Port Type : Ganged 4 port

Contact Now

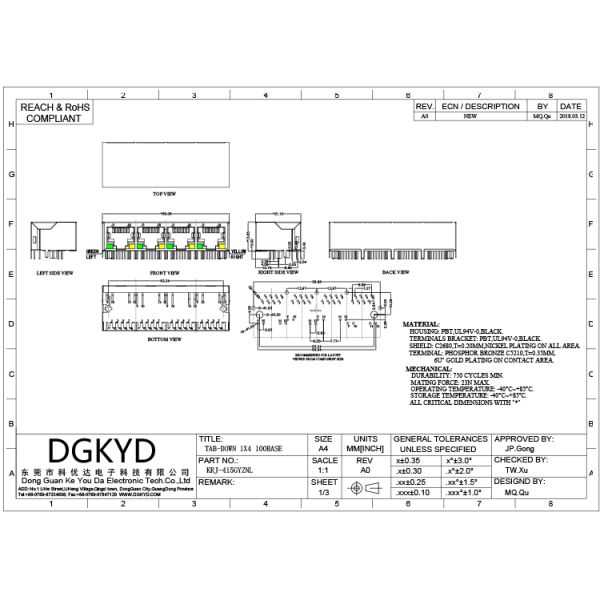

4-Port RJ45 Multiple Port Connectors 100M Magnetic Connector

P/N:KRJ-415GYZNL

Descriptions:

10/100Base-Tx RJ45 4 port 1X4 Vertical with LEDS with side entry
4 port 1X4 Tab-Down RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 260℃
Operating temperarure range :-40℃ to +85℃
Storage temperature range :-40℃ to +85℃
Number of positions:8
Number of contacts loaded:8
Shieded:YES
Rohs compliant
Length:21.3mm
LEDS:YES
EMI:NO
LEFT/Green,RIGHT/Yellow
Usage:KRJ-415GYZNL

4 Port RJ45 Multiple Port Connectors With 100M Magnetics Module

Applications:

Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.

4 Port RJ45 Multiple Port Connectors With 100M Magnetics Module
