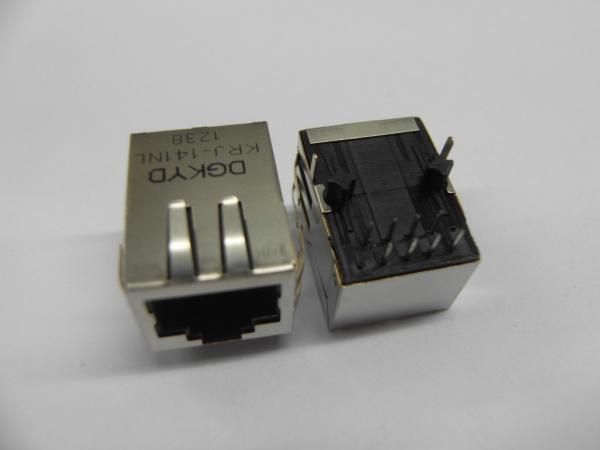

90 degree 10 / 100 Base -TX RJ45 jack Integrated Magnetics ethernet connector

Name: 90 degree 10 100 Base TX RJ45 jack Integrated Magnetics ethernet connector
Brand: DGKYD
Price: 1 USD

Wholesale 90 degree 10 / 100 Base -TX RJ45 jack Integrated Magnetics ethernet connector from china suppliers

Place of Origin : DongGuan of China

Brand Name : DGKYD

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

Model Number : KRJ-022FNL

MOQ : 1 piece

Price : Please contact us to get the latest price.

Packaging Details : Tray in Carton

Delivery Time : 10 days

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Product Name : RJ45 with Transformer

Type : RJ45

No.Port : Single port

Shield RJ45 : yes

Plastic core : Glass fiber filler PBT Black(UL94V-0),ROHS

Housing : Phenolic, PBT Black (UL94V-0)

Contact Now

10/100Base-TX RJ45 With Integrated Magnetics Transformer

90 degree 10 / 100 Base -TX RJ45 jack Integrated Magnetics ethernet connector

RJ45 ,in order to keep good touch between gold finger and crystal head,should paint the gold on the surface,there is 6u,15u,30,50u,usually use 6u,according to customer’s request and cost to proceed, gold finger insert and pull life should be 750 times above.

Applications:

• Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,

telecommunication,MODEM,HomePNA,DSL／ADSL and so on.

90 degree 10 / 100 Base -TX RJ45 jack Integrated Magnetics ethernet connector

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
