DGKYD111Q571AB2A1D 2.5G Filtering Industrial Grade RJ45 Single Port Shielded Connector Modular Interface With Light PBT

Product Categories
Keyouda Electronic Technology Co.,ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

DGKYD111Q571AB2A1D 2.5G Filtering Industrial Grade RJ45 Single Port Shielded Connector Modular Interface With Light PBT

Brand Name : DGKYD

Model Number : DGKYD111Q571AB2A1D2(2.5G)

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

Place of Origin : DongGuan of China

MOQ : Negotiation

Price : Please contact us to get the latest price.

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Delivery Time : 20 days

Packaging Details : 1080 Tray in Carton

Part Number : DIP Ethernet RJ45 Connector

HOUSING : PBT

Connector Type  : Modular Jack

LED Color : Green-Yellow

Filter : With Filter

Gender : Female

Contact Plating : 6u Glod Plating

Contact Base Material  : Phosphor Bronze

Storage temperature : - 40 ℃ ~ 85 ℃

Application : PCB

Latch : TAB-Down

Contact Now

DGKYD111Q571AB2A1D 2.5G filtering Industrial grade RJ45 single port shielded connector Modular interface with light PBT

Parameters

Part Number

DGKYD111Q571AB2A1D(2.5G)

 Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-down
Filter With Filter LED Option With LED
LED Color Green-Yellow Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration  Single Ports Number of Positions 

10
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock WithWithout Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

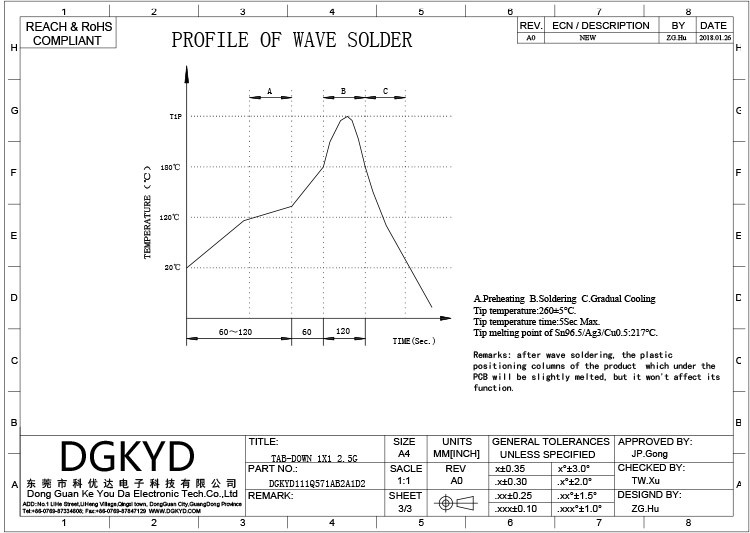

Drawings

DGKYD111Q571AB2A1D 2.5G Filtering Industrial Grade RJ45 Single Port Shielded Connector Modular Interface With Light PBTDGKYD111Q571AB2A1D 2.5G Filtering Industrial Grade RJ45 Single Port Shielded Connector Modular Interface With Light PBTDGKYD111Q571AB2A1D 2.5G Filtering Industrial Grade RJ45 Single Port Shielded Connector Modular Interface With Light PBT

FAQ:

1. Company year, main product type:
Professional design, development/production and sales of network connectors and network transformers
2. Company export country:
We have exported more than countries like USA, Canada, Spain, Russia, Singapore, Thailand, India etc
3. Company Services:
What we offer:
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Smooth communication
